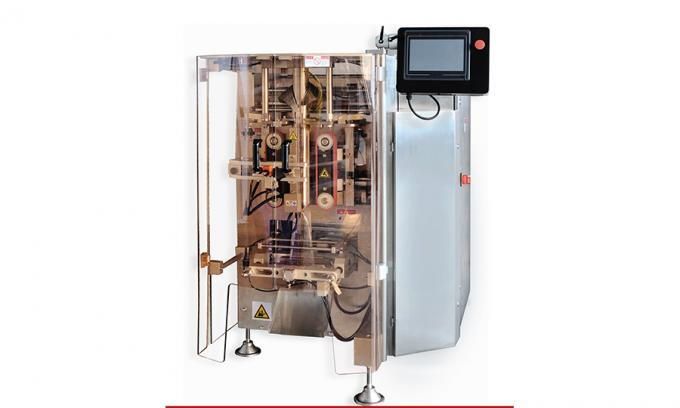

HSP Series Vertical Form Filling Machines
Product Code : HSP
High Speed Packing Machine
Filling nitrogen device, punching jaws, chain bag making device, gusseted device
HSP Series Vertical Form Filling Machines
HSP Series Vertical Form Filling Machines
HSP Series Vertical Form Filling Machines
High Speed Packing Machine
Filling nitrogen device, punching jaws, chain bag making device, gusseted device
Technical Advantage
- The machine is controlled by three servo motors, with continuous pulling film system and of maximum speed which can catch 120bags/min.
- New exterior appearance and combined type of frame are made the machine become more precision on the whole.
- The electric box which can be moved combined to the whole machine handily as well as the touch screen does.
- The servo pulling film system comprises the vacuum pump and planetary gear reductor.It Works stably and has long performance life.
- Over 90% spare parts are stainless material. Also electrical apparatus elements are World famous brands.
- Automatic correction system makes tracking and positioning gravity balance system
- It is easy to adjust the novel vertical sealing structure and developed horizontal sealing structure because of adopting gravity balance system
- The film pulling frame is simple design, easy to adjust and install the film Parts in contact with product in AISI 304 stainless steel
|
AKY - HSP 42 Continuous |
|||
|---|---|---|---|
|
Item |
Contents | Item | Contents |
|
Model |
AKY - HSP 42 Continuous | Packing film material | BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/PE, etc |
|
Max packaging speed |
120 bags/min |
Air consumption | 0,8 Mps 0,3 m /min |
| Type of bag | Pillow Bag | ||
|
Bag Size |
(L) 50-300 (W)90-200 mm | Voltage | 4 KW 220 V 50/60 Hz |
|
Max film width |
420 mm | Machine Size | (L) 1218 x (W) 1020 x (H) 1324 mm |
|
Film thickness |
0,04--0,09 mm | Net weight | 700 kg |
