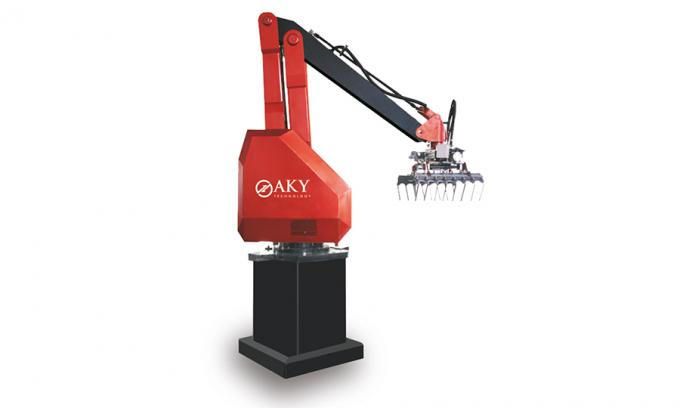

Palletizer Robot RBT 130

Palletizer Robot RBT 130

Product Code : RBT 130

• Complete steel construction.

• Servo-motion technology

• 4-axis motion a,b,c,d

• Capacity 210kg

• Maximum vertical liftin height : 2000mm

...


Whatsapp Contact

FEATURES



• Complete steel construction.

• Servo-motion technology

•  4-axis motion a,b,c,d

• Capacity 210kg

• Maximum vertical lifting height : 2000mm

• Reach distance 1300mm

• Motion sensitivity; +- 0,5 mm

• Main frame rotate angle : 330 degrees

• Gripper rotate angle : 330 degrees

• Handing capacity : 1500 times/hour

• 10” movable touch screen (connected with cable)

• Changeable gripper unit

• High quality mechanical system

• Required power 4,5 kW

• Robot weight : 800 kg (gripper is not included)

• Must be assambled on flat concrete

• Emergency stop system

• Error report system

• Required air pressure : 0,5 mpa
