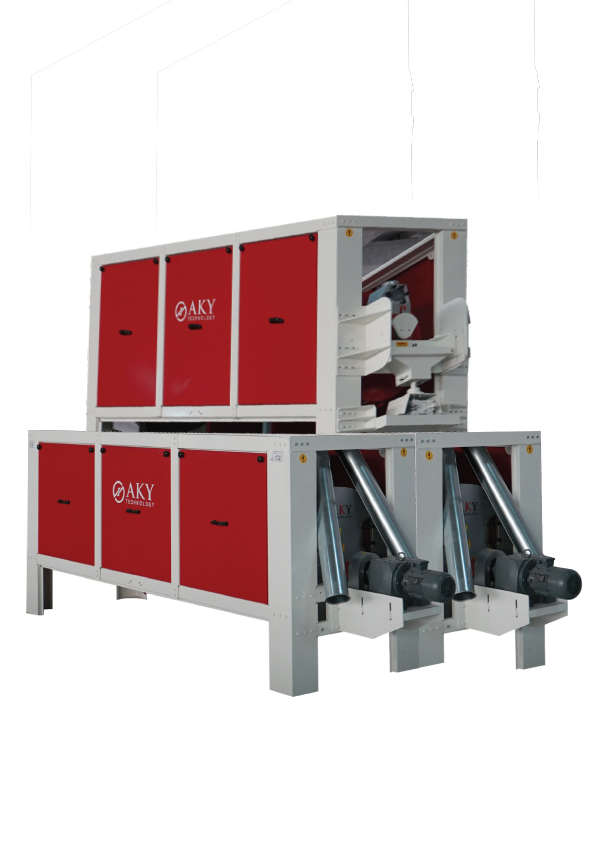

Triangle Indent Cylinder
Product Code : TRI-030/90x300/3
Indent Cylinder is used to separate the long, round and broken grains from the product.

The product that poured into the cylinder, fits in the round indents on the mantle. The longer grains which don’t fit into the round shaped indents are separated from the ones that fit into them. The embed seeds are dropped into the screw conveyor chamber with the rotation of the indent cylinder. After that, they are either transferred to another cylinder to separate shorter grains (broken, round) or to the next machine.
Ürün / Product |
LABOR TRI-0020 |
TRI-0020 200×63 |
TRI-0020 240×90 |
TRI-0020 300×63 |
TRI-030 300×90 |
---|---|---|---|---|---|
Silindir Kapasites t/si / Capacity per cylinder t/h | |||||
Buğday Wheat |
0,3 | 1 | 2 | 3 |
6 |
Arpa Barley |
0,25 | 0,8 | 1,6 | 2,4 |
3,2 |
Pirinç Rice |
0,2 | 0,4 | 0,8 | 1,2 |
1,6 |
Şeker Pancarı Sugar Beet Seed |
0,2 | 0,3 | 0,6 | 1 |
1,3 |
Ayçekirdeği Sunflower |
0,1 | 0,2 | 0,6 | 1 |
1,3 |
Alf / Alfa |
0,1 | 0,3 | 0,4 | 0,6 |
0,8 |
Motor Kapasite kW Motor Capacity kW |
0,37 | 0,37 | 0,55 | 3 | 3 |
Silindir Ölçüleri Dimensions of Cylinder |
|||||
Uzunluk (mm) Lenght (mm) |
1000 | 2000 | 2400 | 3000 | 3000 |
Çap Diameter |
30 | 630 | 900 | 630 | 900 |
Uzunluk (mm) Llength (mm) |
750 | 2600 | 3000 | 3600 | 3600 |
Yükseklik (mm) Heigth (mm) |
500 | 2540 | 2600 | 2540 | 2600 |
En (mm) Width (mm) |
100 | 1200 | 1240 | 1240 | 1240 |
