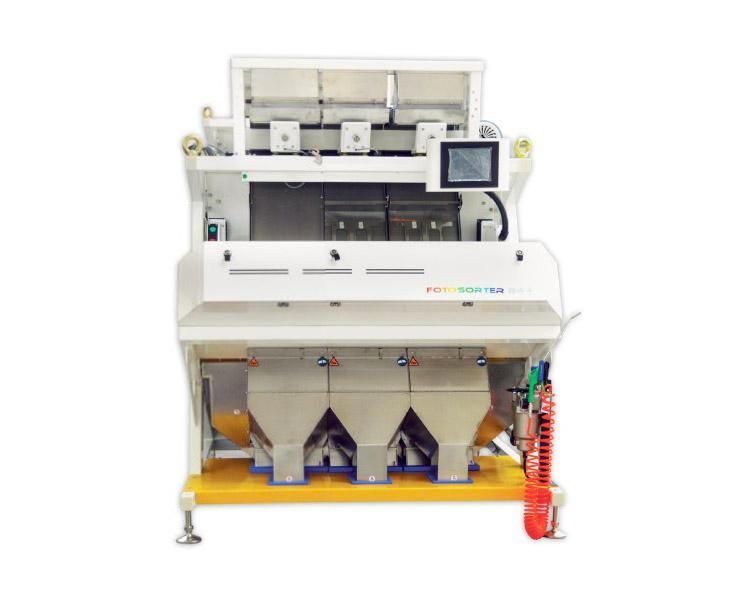

Three Channel Fotosorter B3+ Color Sorter

Three Channel Fotosorter B3+ Color Sorter

Product Code : FOTOSORTER B3

AKY  Color Sort optical color sorting machine separates the discolored kernel from good kernels which have already pre-cleaned. Quality of screened product increases to %99,8. AKY Fotosorter Color sorter machine constructed with latest technology available to the industry.




Whatsapp Contact

Function :

AKY Color Sort optical color sorting machine separates the discolored kernel from good kernels which have already pre-cleaned. Quality of screened product increases to %99,8. AKY Fotosorter Color sorter machine constructed with latest technology available to the industry.



Working Pricniple :

An elevator feeds kernels into hopper which is located on top of the color sorter. From hopper kernels fed in to machine from 2 channels out of three. Kernels flow downwards as a thin layer passing by in front of CCD cameras. These cameras detect the discolored kernels, kernels that are low quality. CCD cameras send commands to computer program and program converts the commands for ejectors to separate these kernels from the good kernels. These low quality kernels fed back into the system from the last channel and discolored kernels re-sorted by color sorter. This way, product wastage reduces.



CCD cameras can detect discoloration on a kernel as small as 0,008 mm2. Machine is programmable for product quality variations. Integrated computer program alerts of faults and errors that machines can come across whilst operating.



Capacity :

Please note that the accept and reject quantities that can be obtained are interdependent and also depend on the input contamination. The throughput capacities shown are also dependent on the input contamination and the required quality of accept and reject.

Capacities can range considerably between commodities and for most applications we suggest a color sort test to determine the results that may be obtained and the capacity rate per channel.

In lines with capacity enlargement, for operations that are multi commodity color sorting AKY Technology can manufacture color sorter with more than one re-sort channel.

Makine Çeşitleri/ Machine Type B2 B3 B4 B5 B6 B7
Voltaj / Voltage AC220V 50HZ AC220V 50HZ AC220V 50HZ AC220V 50HZ AC220V 50HZ AC220V 50HZ
Güç / Power (KW) 1,0 - 2,7 1,0 - 2,7 1,2 - 7 2-4,5 4,5-6 2-4.5
Gereken Hava Oranı Air Consumption(L/min) 1000 1000-1800 1200-2500 1800-4000 4000-6000 <4500
Ağırlık/Weight (kg) 750 850 950 1050 1250 1200
a Ölçüler / Dimensions (mm) 1.880 1.880 1.950 1.950 1.950 1.953
b Ölçüler / Dimensions (mm) 1.642 1.642 1.642 1.642 1.642 2.200
c Ölçüler / Dimensions (mm) 1.580 1.580 1.580 1.580 1.580 1.607
d Ölçüler / Dimensions (mm) 1.310 1.620 1.950 2.310 2.660 2934
Kamera Sayısı (Adet) Number of Cameras (Piece) 4 6 8 10 12 14
Ejektör Sayısı (Adet) The number of ejektor (Piece) 128 192 256 320 384 448
Kamera Tipi Camera Type Trikromatik CCD Mono Trikromatik CCD Mono Trikromatik CCD Mono Trikromatik CCD Mono Trikromatik CCD Mono Trikromatik CCD Mono
Trikromatik CCD Color Trikromatik CCD Color Trikromatik CCD Color Trikromatik CCD Color Trikromatik CCD Color Trikromatik CCD Color
IR Camera Infread Camera Opsiyonel Optional Opsiyonel Optional Opsiyonel Optional Opsiyonel Optional Opsiyonel Optional Opsiyonel Optional
Kanal Genişliği (mm.) Channel Width (mm.) 330x2 330x3 330x4 330x5 330x6 330x7
Çıkış Oluğu Sayısı The Number of Output Ducts 5 7 9 11 13 15
Ses Düzeyi Noise Level 80 dB 80 dB 80 dB 80 dB 80 dB 80dB
Kapasite Ton/Saat Capacity Tonnes / Hour Buğday Wheat Min 0.6 Max 3 Min 0.9 Max 4.5 Min 1.2 Max 6 Min 1.5 Max 7.5 Min 1.8 Max 9 Min 3.5 Max 14
Kapasiteler NSA ürün içerisindeki kirlilik miktarına göre değişiklik gösterebilir. Capacities very based on the amount of pollution in the NSA product.
