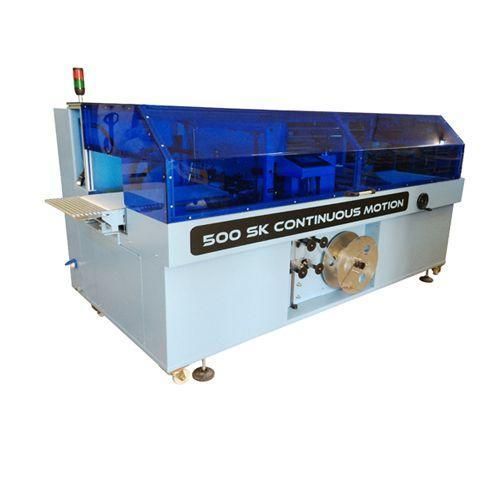

500 SK Continuous Motion Side Sealer

500 SK Continuous Motion Side Sealer

Product Code : 500SK

  • High speed automation with continuous-motion packaging system

  • Without time loss for complete sealing sequence by vertical & linear motion operation

  • Simple operation to the adjustment of packaging height. Easy change the height to tit with any different packaging size. It can reduce the time of sealing strok & raise the efficiency of packaging speed.


Whatsapp Contact

  • High speed automation with continuous-motion packaging system

  • Without time loss for complete sealing sequence by vertical & linear motion operation

  • Simple operation to the adjustment of packaging height. Easy change the height to tit with any different packaging size. It can reduce the time of sealing strok & raise the efticiency of packaging speed.

  • Easy integration to the production lines with adjustable infeed conveyor

  • The output capacity can reach up to 120 packs/min. Depending on the film, package dimension

  • Operating without air pressure

  • Two direction vertical & horizontal Servo motor driven cross seal.

  • Film: Centre-folded film, approx. 12 - 80 micron

  • Speed of transport conveyor, variable : 10 – 40 m/min

  • Integrated DELTA control management without any need of additional PLC communication

  • Easy-handling touch screen control preventing man-made mistakes

  • Simple and variety products infeed systems are available to feed different kinds of products

  • Encoder controlled length adjustment for automatic synchronization with the speed

  • Special side sealer device can reduce the wastage films, further reduce the packing cost. Compare to other machines, up to 10%-20% material cost can save

  • Advance side sealer continuous motion at cross seal, servo control series realize perfect shrink wrap with top efficiency, applicable for mass packaging like CD, Photo frame, Books, Magazine, Electronic products etc…

  • End seal jaw could adjust easily to allow large and tall products

  • Equipped with self-adapt feeding system adjust feed speed automatically according to speed of host machine

  • In feed moving belt to make the change and load of film easier.

  • One year warranty on non-wearable parts

  • Manufacturer’s guarantee for spare part stock and after sales support.
