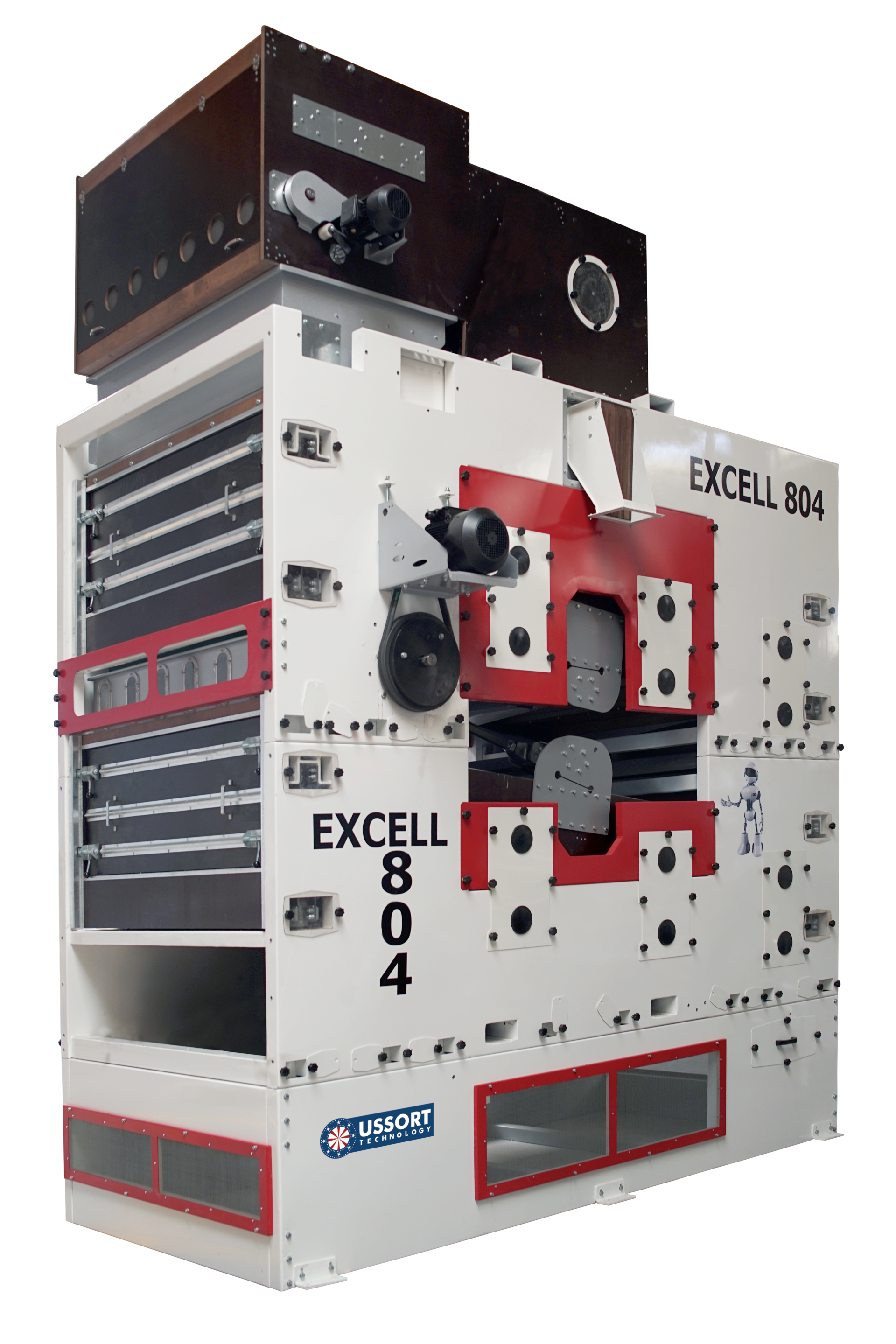

Excell 804 Pre Cleaning Machine
Product Code : Excell-804
The Excell 804 pre-cleaning machine has been developed for cleaning products such as grains, pulses and seeds.
Excell 804 Pre Cleaning Machine
Excell 804 Pre Cleaning Machine
Excell 804 Pre Cleaning Machine
Thanks to its dual distributor feature, it separates the product into two different sieves. The product poured from the distributor passes through the air channel and is cleaned from light dust and dirt. After the air channel, the product is first separated from unwanted large materials such as “long garbage, soil pieces, stones, etc.” in the short trough. Afterwards, the product is separated into four different sieves and high capacity sieve bottom and sieve top cleaning is provided.
| EXCELL 804 | |
|---|---|
| Machine Weight | 5500 kg |
| Machine Dimension (X, Y, Z) mm | 4360x5900x2450 |
| Machine Screening Area | 18m² |
| Number of Machine Sieves | 12 |
| Machine Sieve Size (X, Z) mm | 1500×1000 |
| Machine Eccentric Motor | 3 kW |
| Machine Product Distributor Engine | 0,75 kW |
| Machine Spiral Motor | 0,55 kW |
| Valve Adjustment PLC | Actuator Quantity 1 Stroke 100-300mm |
| Machine Noise Level | 72 Decibels Maximum |
| Machine Aspirator Air Volume | Idle 7000 m³ |
| Machine Color | Acrylic Grey – Acrylic White |
| Sieve Cleaning | Mass Cleaning System |
| Standard Voltage | 380V |
| Total Power | 4,3 kW |
| Machine Manufacturing Material | St44-Ç 1040 1st Class Plywood |
| NATURAL PRODUCT IS PREPARED ACCORDING TO THE INPUT AMOUNT. PRODUCT MOISTURE RATE MUST BE 15% MAX. |
|
|---|---|
| Wheat, Rye, Barley | 30.0 – 35.0 t/h |
| Oats, Corn, White Rice | 40 t/h |
| Soy, Peas, Coffee | 40 t/h |
| Rice | 30 t/h |
| Sunflower Seeds | 20 – 22 t/h |
| Rye Grass, Clover | 8.0 – 10 t/h |
